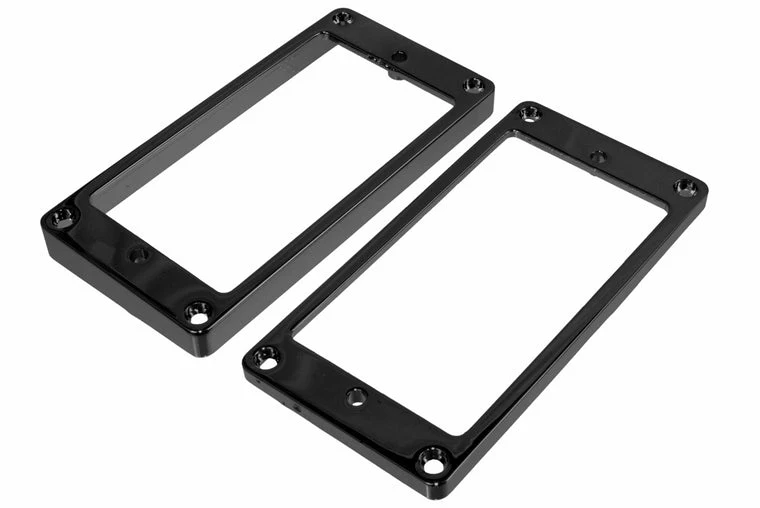

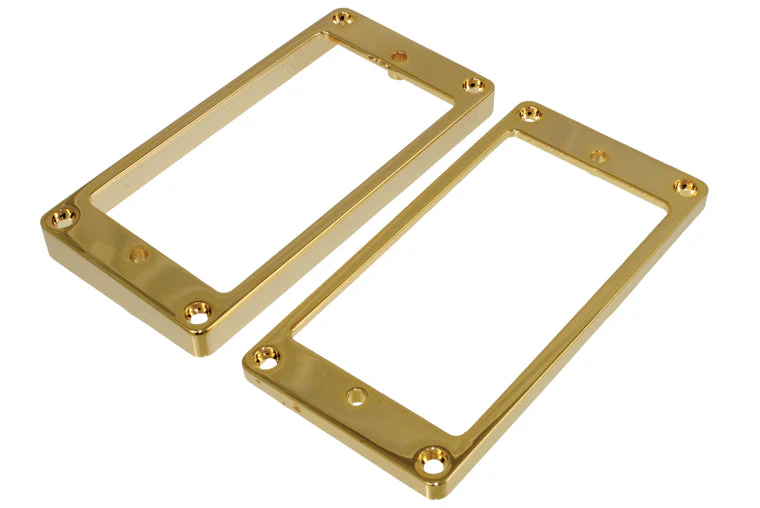

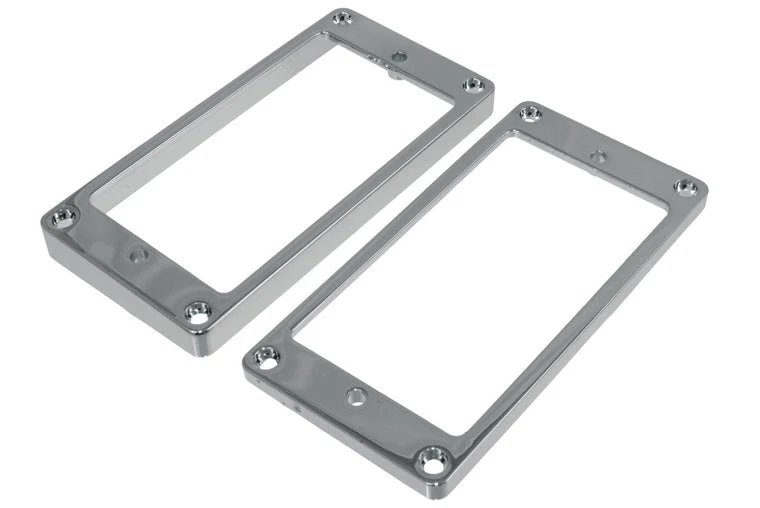

Humbucking Pickup Ring Set of 2 with Curved Bottom, Metal

Humbucking Pickup Ring Set of 2 with Curved Bottom, Metal

Inside dimensions 2.75 x 1.5 inches (70mm x 38.1mm)

Outside dimensions 3.5 x 1.75 inches. (89mm x 44.5mm)

Neck ring height .25 inch (6.35mm) , bridge .5 inch. (12.7mm)

Distance between mounting screw holes (centre to centre) long side : 80mm

Distance between mounting screw holes (centre to centre) short side: 38mm

Distance between pickup height screw holes (centre to centre): 78mm

Curved underside has 20" radius
