Wiring kit - Jimmy Page Les PaulĀ® Style

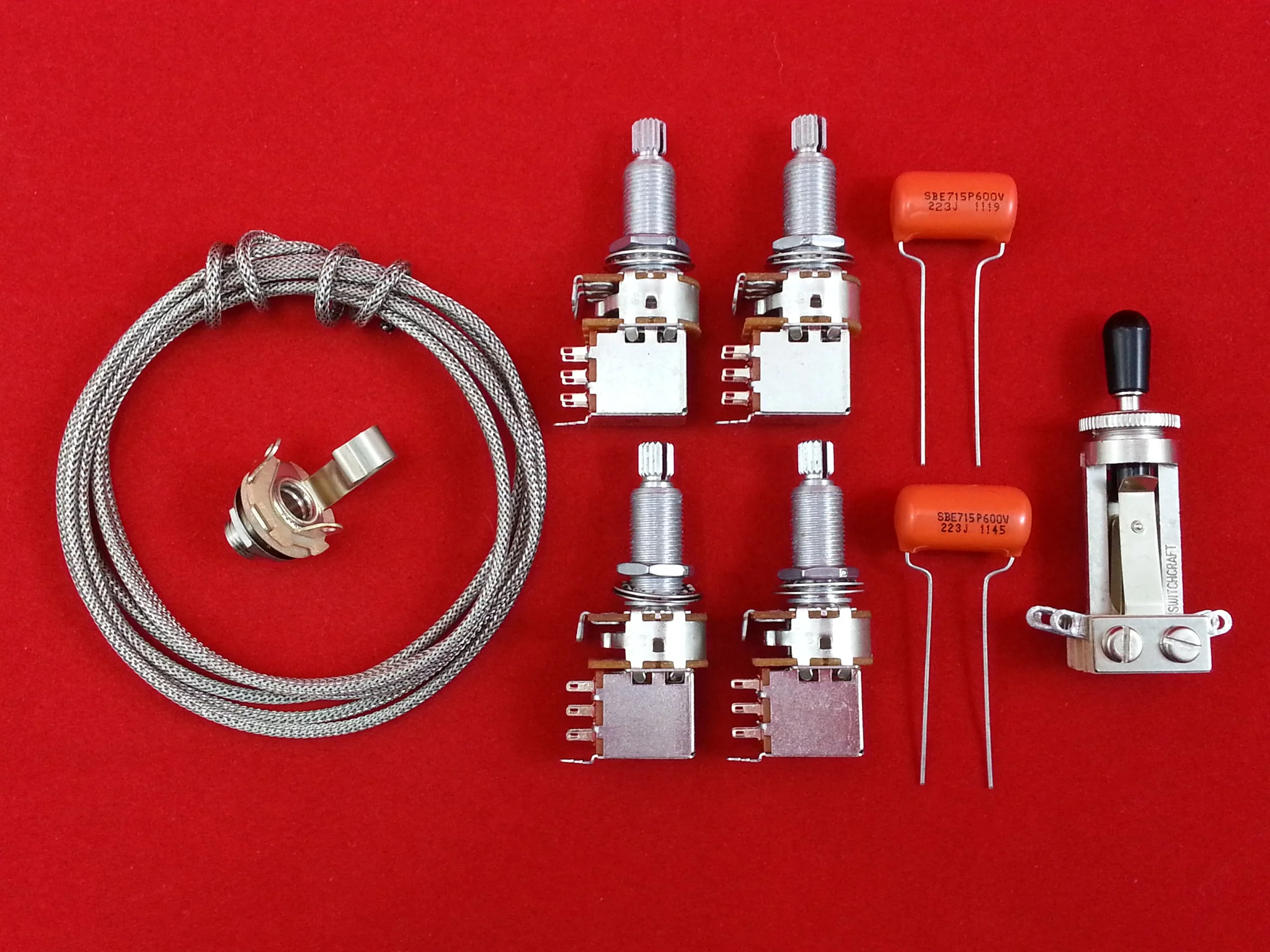

Wiring Kit for Jimmy Page style Les PaulĀ® Contains the following parts:
1 x EP-4367-000 Switchcraft straight toggle switch
1 x EP-0055-000 Switchcraft input jack
4 x EP-4286-000 500k push / pull pots
5 x feet of GW-0837-000 braided shield wire
2 x EP-4380-000 Two .022 Orange Drop capacitors

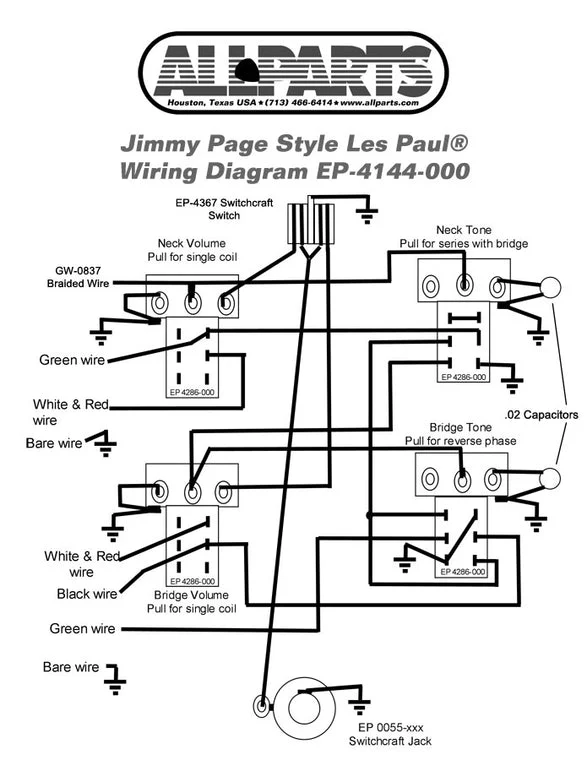

1 x wiring diagram
(Please note: the colour codes on the pickups shown in the diagram are what Seymour Duncan uses. Not all pickup manufactures use the same colour coding system on their pickups, so you must check which wire refers to which on your chosen brand of pickups before installation).
Original: $156.36
-65%$156.36
$54.73Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Wiring Kit for Jimmy Page style Les PaulĀ® Contains the following parts:
1 x EP-4367-000 Switchcraft straight toggle switch
1 x EP-0055-000 Switchcraft input jack
4 x EP-4286-000 500k push / pull pots
5 x feet of GW-0837-000 braided shield wire
2 x EP-4380-000 Two .022 Orange Drop capacitors
1 x wiring diagram
(Please note: the colour codes on the pickups shown in the diagram are what Seymour Duncan uses. Not all pickup manufactures use the same colour coding system on their pickups, so you must check which wire refers to which on your chosen brand of pickups before installation).
